Gap Lathe

Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1012
Product serial number
Category
Gap-Bed
Quantity
-
+
Stock:
0
Product description
Parameters

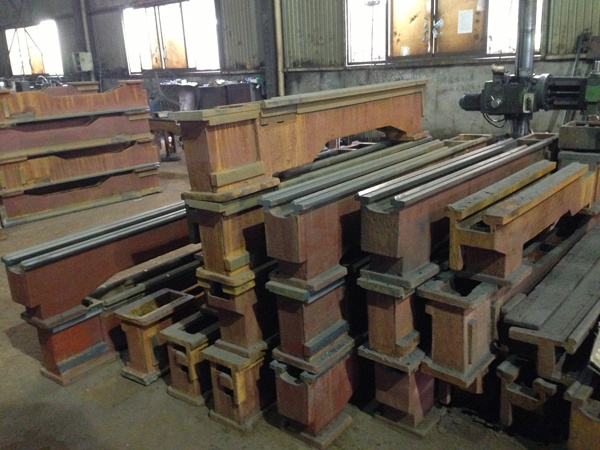

Harden and precision ground bedway, one piece complete stand

Euro-standard electrical control board available on request.



  22603 22604 22605 22606
MAJOR SPECIFICATIONS L6241 L6246 L6251 L6256
Max. Swing over bed 410mm 460mm 510mm 560mm
Max. Swing over cross slide 224mm 274mm 300mm 350mm
Max. Swing in gap 640mm 690mm 738mm 788mm
Distance between centers 1000/1500mm 1500/2000mm
Spindle bore 58mm 80mm
Taper of spindle bore M. T. #6 M. T. #7
Range of spindle speed 25-2000rpm. 25-1600rpm.
Range of longitudinal feeds 0.03-1.7 mm/rev. 0.059-1.646 mm/rev.
Range of cross feeds 0.014-0.784Mm/rev. 0.020-0.573Mm/rev.
Range of metric threads 0.1-14mm 0.2-14mm
Range of inch threads 2-112 TPI 2-112 TPI
Diametrical pitches range 4-112D.P. 4-112D.P.
Module pitches rage 0.1-7M.P. 0.1-7M.P.
Taper of tailstock bore M. T. #4 M. T. #5
Power of motor 4kw/5.5kw 7.5kw
Old model C6241 C6246 C6251 C6256



Type of lathes Packing dimensions Net weight Gross weight
L6241 x 1000 2250 x 1120 x 1700mm 1670kg 1980kg
L6241 x 1500 2800 x 1120 x 1700mm 1970kg 2320kg
L6246 x 1000 2250 x 1120 x 1730mm 1720kg 2045kg
L6246 x 1500 2800 x 1120 x 1700mm 2020kg 2385kg
L6251 x 1500 2960 x 1130 x 1820mm 2335kg 2700kg
L6241 x 2000 3460 x 1130 x 1820mm 2685kg 3070kg
L6256 x 1500 2960 x 1130 x 1820mm 2370kg 2740kg
L6256 x 2000 3460 x 1130 x 1820mm 2720kg 3110kg



111111111111

11111111111111

Optional Accessories

Work light

Quick change tool post

Drill chuck with arbor

4-Jaw chuck (Φ320mm)

Face plate

Leadscrew guard

Live center



Standard Accessories

3-Jaw chuck (Φ160mm)

M. T. 6/4 sleeve

M. T. 7/5 sleeve

M. T. #5 dead center

Tool box with tools

Steady rest

Follow rest

Change gears set

Coolant system

Splash guard
