HP-M300 CNC Turret Punch Machine
With strong support from SJR Machinery, Toptech Smac now is able to offer both metal cutting and metal forming machines to our valued customers. The produce lines include lathes, milling machines, grinding machines, power presses and hydraulic press brakes, CNC machines. With timely service and on-site training, our qualified technicians can ensure the machines’ maximum productivity. Toptech Smac also provides industrial solutions for your individual needs.
Category :
CNC punching
Keywords: machine tool 丨 grinding machine 丨 CNC
Product Detail
HP-M300 CNC Turret Punch Machine

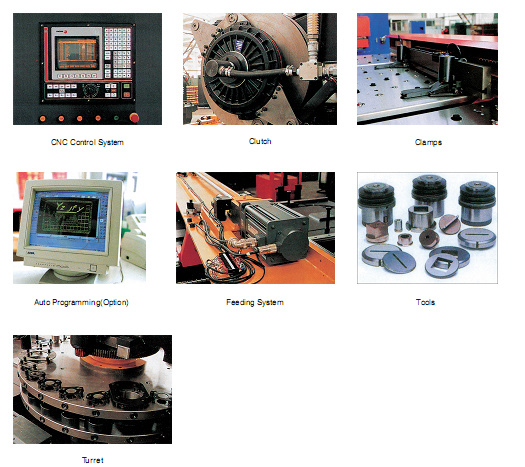

The high precision large traverse ballscrews and linear guideways with reliability are equipped for driving
The reliable national level CNC systems is fitted with the machine.
To make the machine more reliable, the import cluch is used.
The main pneumatic parts are imported name ones to make the mechanism more reliable.
The fully bushed high precision turret improves efficiently the accuracy and longevity of the turret, and the 24 or 32 stations is optional.
The advanced working and heat treatment technology is adopted to the tools for the longevity of the tools.
Tooling layout
|
Stations number
|
Tooling diameter rang
|
Tooling number
|
|
|
24 stations
|
Φ88.9-Φ32
|
Φ7/2-Φ5/4
|
4
|
|
32 stations
|
Φ32-
|
Φ5/4
|
20
|
|
Φ88.9-Φ32
|
Φ7/2-Φ5/4
|
4
|
|
|
|
Φ32-
|
Φ5/4
|
28
|
|
Specification
|
Unit
|
HP-M300
|
||
|
punch force
|
KN
|
KN
|
300
|
300
|
|
Max. sheet working size
|
mm
|
in
|
1250 x 2500
|
50 x 100
|
|
Max. sheet working welth
|
kg
|
lb
|
150
|
330
|
|
max. sheet thickness
|
mm
|
in
|
6.35
|
0.254
|
|
Max. Punch diameter
|
mm
|
in
|
Φ88.9
|
Φ3.56
|
|
Number of tool stations
|
|
|
24, 32
|
24, 32
|
|
Positionzing repetability
|
mm
|
in
|
0.1
|
0.004
|
|
Max. hit speed
|
hpm
|
hpm
|
300
|
300
|
|
Pax. traversing speed
|
m/min
|
in/min
|
56
|
2240
|
|
Turret rotation
|
rpm
|
rpm
|
30
|
30
|
|
Axis number
|
|
|
3
|
3
|
|
Compressed air pressure
|
mpa
|
mpa
|
0.6
|
0.6
|
|
Shipping dimensions
|
mm
|
in
|
500 x2680 x2175
|
20x107.2 x87
|
|
Machine weight
|
ton
|
lb
|
13
|
28600
|
