QH11D Mechanic Shearing Machine
With strong support from SJR Machinery, Toptech Smac now is able to offer both metal cutting and metal forming machines to our valued customers. The produce lines include lathes, milling machines, grinding machines, power presses and hydraulic press brakes, CNC machines. With timely service and on-site training, our qualified technicians can ensure the machines’ maximum productivity. Toptech Smac also provides industrial solutions for your individual needs.
Category :
Guillotines
Keywords: machine tool 丨 grinding machine 丨 CNC
Product Detail

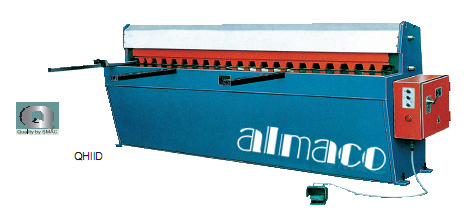

QH11D Mechanic Shearing Machine
This machine is of simple construction, sensitive and reliable control, and easy maintenance.
|
Specification Model
|
Shearing Thickness (mm)
|
Shearing Width (mm)
|
Shearing Angle
|
Number of Stroke (min-1)
|
Backgauge Rang (mm)
|
Motor Power (kw)
|
Overall Dimensions (mm) (L x W x H)
|
Net Weight (kg)
|
|
|
10401
|
3 x 1200
|
3
|
1200
|
2°25’
|
54
|
350
|
2.2
|
1980 x 1550 x 1245
|
1180
|
|
10402
|
3 x 1300
|
3
|
1300
|
2°14’
|
54
|
350
|
2.2
|
2080 x 1505 x 1245
|
1250
|
|
10403
|
3 x 1500
|
3
|
1500
|
2°
|
54
|
350
|
2.2
|
2280 x 1505 x 1245
|
1400
|
|
10404
|
3.5 x 1300
|
3.5
|
1300
|
2°14’
|
65
|
500
|
3
|
2000 x 1600 x 1300
|
1350
|
|
10405
|
3.5 x 1500
|
3.5
|
1500
|
2°25’
|
45
|
350
|
2.2
|
2280 x 1505 x 1300
|
1500
|
This machine is different from the traditional driving method of mechanical sheares ,It is one of the most advanced mechanical shearers. A brake motor driving through a shaft-mounted speed reduction unit and controlled by a detector switch for single or continuous stroke provides quiet instantaneous engagement.The low cutting angle and inclined shearing direction reduces bowing and twist to a minimum, Blade clearance is easily set by a manually operated "Quick Set"device,it is an ideal true cut machining equipment of sheet metal and nonferrous sheet metal.
|
Model
|
Specification
|
Cutting Thickness (mm)
|
Cutting Width (mm)
|
Cutting Angle
|
Strokes Per minute
|
Backguage (mm)
|
Table height (mm)
|
Motor power (kw)
|
Overall size (mm)
|
Weight (kgs)
|
|
|
10406
|
QH11D-2.5x2500
|
2.5
|
2500
|
1°
|
47
|
0-650
|
800
|
5.5
|
3124 x 2210 x 1180
|
2000
|
|
|
10407
|
QH11D-3.2x2000
|
3.2
|
2000
|
1°45’
|
47
|
0-650
|
800
|
7.5
|
2624 x 2210 x 1180
|
1800
|
|
|
10408
|
QH11D-3.2x2500
|
3.2
|
2500
|
1°18’
|
47
|
0-650
|
800
|
7.5
|
3124 x 2210 x 1180
|
2100
|
|
|
10409
|
QH11D-3.5x1250
|
3.5
|
1250
|
1°30’
|
47
|
0-650
|
800
|
7.5
|
1860 x 2210 x 1180
|
1450
|
|
|
10410
|
QH11D-3.5x3000
|
3.5
|
3000
|
1°30’
|
47
|
0-650
|
800
|
9
|
3599 x 2448 x 1290
|
2500
|
|
|
10411
|
QH11D-2x3660
|
2
|
3660
|
1°30’
|
47
|
0-650
|
800
|
9
|
4200 x 2448 x 1240
|
3500
|
|
