Punching&Shearing
With strong support from SJR Machinery, Toptech Smac now is able to offer both metal cutting and metal forming machines to our valued customers. The produce lines include lathes, milling machines, grinding machines, power presses and hydraulic press brakes, CNC machines. With timely service and on-site training, our qualified technicians can ensure the machines’ maximum productivity. Toptech Smac also provides industrial solutions for your individual needs.
Category :

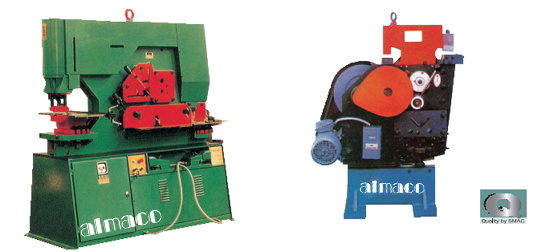

Iron worker
Keywords: machine tool 丨 grinding machine 丨 CNC
Product Detail
|
Specification
|
Model
|
Unit
|
10601
|
10602
|
10603
|
10604
|
|
Q35Y-16
|
Q35Y-20
|
Q35Y-25
|
Q35Y-30
|
|||
|
Pressure
|
TOM
|
55
|
75
|
110
|
140
|
|
|
Max.cutting tickness
|
Mm16
|
16
|
20
|
25
|
30
|
|
|
Plate strength
|
n/mm2
|
<450
|
<450
|
<45
|
<45
|
|
|
Cutting angle
|
degree
|
7
|
8
|
8
|
8
|
|
|
Shearing size of one stroke
|
mm
|
16*250 8*400
|
20*330 10*480
|
25*300 16*600
|
30*355 20*600
|
|
|
Ram stroke
|
mm
|
80
|
80
|
80
|
80
|
|
|
Number of strokes
|
cpm
|
8
|
8
|
6
|
8
|
|
|
Throat thickness
|
mm
|
300
|
355
|
400
|
600
|
|
|
Pumching thickness
|
mm
|
16
|
20
|
25
|
26
|
|
|
Max.Puching diameter
|
mm
|
25
|
30
|
35
|
38
|
|
|
Power of main motor
|
Km
|
4
|
5.5
|
7.5
|
11
|
|
|
Over al dimensions(L*W*H)
|
Mm
|
1640*730*1770
|
1860*800*1900
|
2355*960*2090
|
2680*1040*2330
|
|
|
Weight of machine
|
Kg
|
1600
|
2000
|
4800
|
6800
|
|
|
Specification
|
Model
|
Unit
|
10605
|
10606
|
10607
|
|
QA34-25
|
QA35-16
|
QA32-8A/8B
|
|||
|
Shearing thickness
|
mm
|
25
|
16
|
8
|
|
|
Shearing size of one stroke
|
mm
|
25 x 160
|
20 x 140
|
120 x 100
|
|
|
Punching thickness
|
mm
|
25
|
25
|
8
|
|
|
Max. punching diameter
|
mm
|
35
|
28
|
22
|
|
|
Ram stroke
|
mm
|
36
|
26
|
27
|
|
|
Number of strokes
|
min-1
|
25
|
36
|
30
|
|
|
Throat depth
|
mm
|
600
|
450
|
|
|
|
Cutting angle
|
|
11
|
13
|
|
|
|
Main motor power
|
kw
|
7.5
|
14
|
2.2
|
|
|
Over all dimensions (L x W x H)
|
mm
|
2840 x 1290 x 2460
|
1850 x 700 x 1935
|
900 x 500 x 1100
|
|
|
Net weight
|
kg
|
700
|
2830
|
500
|
|
