Asymmetrical 3-Roller
With strong support from SJR Machinery, Toptech Smac now is able to offer both metal cutting and metal forming machines to our valued customers. The produce lines include lathes, milling machines, grinding machines, power presses and hydraulic press brakes, CNC machines. With timely service and on-site training, our qualified technicians can ensure the machines’ maximum productivity. Toptech Smac also provides industrial solutions for your individual needs.
Category :
Rolls
Keywords: machine tool 丨 grinding machine 丨 CNC
Product Detail
The WR series asymmetrical three roller bending machine's upper rollers is hand-adjuste up and down. The machine has a pre-bending function. Bending function is power driven,and the upper roller can be moved to remove the workpiece.
|
|
Model
|
Maximum thickness (mm)
|
Maximum width(mm)
|
Yield limit (MPa)
|
Minimum diameter full capacity (mm)
|
Top roller diameter (mm)
|
Bottom roller diameter (mm)
|
Main motor(kw)
|
Upper motor(kw)
|
Weight (kg)
|
Size (L.W.H)
|
|
114373
|

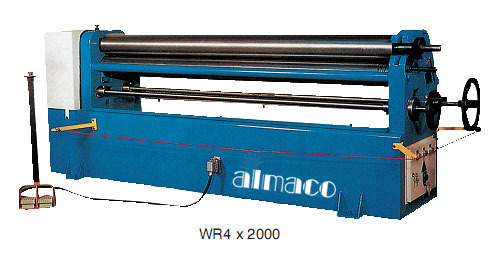

WR 4*2000
|
4
|
2000
|
245
|
200
|
135
|
135
|
3
|
1.5
|
1650
|
3210*970*1316
|
Power, hand asymmetrical 3-roller bending machine is especially designed for thin sheet. Multifunction operation is obained by changing the foleder.
|
|
Model
|
Maximum thickness (mm)
|
Maximum width(mm)
|
Yield limit (MPa)
|
Minimum diameter full capacity (mm)
|
Top roller diameter (mm)
|
Bottom roller diameter (mm)
|
Weight (kg)
|
Size (L.W.H)
|
|
11438
|
W112 x 1000
|
2
|
1000
|
245
|
100
|
72
|
72
|
198
|
1480 x 530 x 1170
|
|
11439
|
W111.5 x 1270
|
1.5
|
1270
|
245
|
100
|
72
|
72
|
223
|
1750 x 550 x 1170
|
|
11440
|
W111.2x 1530
|
1.5
|
1530
|
245
|
100
|
72
|
72
|
251
|
2000 x 550 x 1170
|
|
11441
|
W111.2x 750
|
1.2
|
750
|
245
|
80
|
52
|
52
|
100
|
1000 x 400 x 500
|
|
|
Model
|
Maximum thickness (mm)
|
Maximum width(mm)
|
Yield limit (MPa)
|
Minimum diameter full capacity (mm)
|
Top roller diameter (mm)
|
Bottom roller diameter (mm)
|
Motor (kg)
|
Weight (kg)
|
Size (L.W.H)
|
|
11442
|
W11G2 x 1000
|
2
|
1000
|
245
|
100
|
72
|
72
|
1.1
|
220
|
1540 x 550 x 1170
|
|
11443
|
W11G1.5 x 1300
|
1.5
|
1300
|
245
|
100
|
72
|
72
|
1.1
|
244
|
1800 x 550 x 1170
|
|
11444
|
W11G1.2x 1530
|
1.5
|
1530
|
245
|
100
|
72
|
72
|
1.1
|
272
|
2050 x 550 x 1170
|
