JWB And JWC Series
With strong support from SJR Machinery, Toptech Smac now is able to offer both metal cutting and metal forming machines to our valued customers. The produce lines include lathes, milling machines, grinding machines, power presses and hydraulic press brakes, CNC machines. With timely service and on-site training, our qualified technicians can ensure the machines’ maximum productivity. Toptech Smac also provides industrial solutions for your individual needs.
Category :
Tube
Keywords: machine tool 丨 grinding machine 丨 CNC
Product Detail

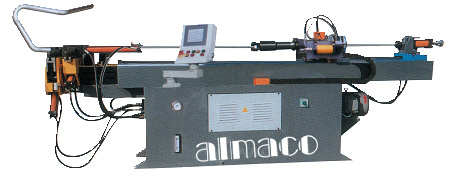

Characteristics of the machine:
It adopts imported special control system. The action of the machines is stedady. It has functions of hand-operated, inching, auto, setting, changing-program, showing and others.It is suitable for high speed batch production.
Characteristics of the machine:
It adopts imported special control system. The roate the position with hand in three-space. It has program setting, exchanging, multiple-angle three-space hand-operated con-tinuous rotating-position feeding, auto gripping parts and other functions. It is suitable for processing high-precision complex fittings.
|
Unit Specification
|
Model
|
12101
|
12101-1
|
12101-2
|
12102
|
12102-2
|
12103
|
12104
|
12104-1
|
|
|
28B/28C
|
38B/38C
|
50B/50C
|
60B/60C
|
75B/75C
|
100B/100C
|
120B/120C
|
160B/160C
|
|||
|
Max. Bending Pipe Capacity: R40kg/mm
|
mm
|
28
|
38
|
50
|
60
|
75
|
100
|
120
|
160
|
|
|
Max. Pipe Wall Thickness
|
mm
|
1.8
|
2
|
2
|
2
|
2.5
|
2.5
|
3
|
3
|
|
|
Bending Radium Region
|
mm
|
25-150
|
30-200
|
35-250
|
35-250
|
60-350
|
60-400
|
80-500
|
100-600
|
|
|
Bending Angle Region
|
Degree
|
190
|
190
|
190
|
190
|
190
|
190
|
190
|
190
|
|
|
Oil Pressure System Motor
|
Kw
|
3.2
|
4
|
5.5
|
5.5
|
7.5
|
11
|
11
|
22
|
|
|
Max. Pressure
|
kg/cm
|
140
|
140
|
140
|
140
|
140
|
160
|
160
|
160
|
|
|
Machine Width
|
mm
|
650
|
700
|
800
|
800
|
1050
|
1200
|
1600
|
2200
|
|
|
Machine Height
|
mm
|
1300
|
1300
|
1300
|
1300
|
1350
|
1350
|
1400
|
1500
|
|
|
Machine Length
|
mm
|
2500
|
3500
|
4500
|
5000
|
5500
|
5800
|
6000
|
8500
|
|
|
Machine Weight
|
kg
|
1000
|
1500
|
1700
|
2000
|
3200
|
4500
|
6000
|
8000
|
|
