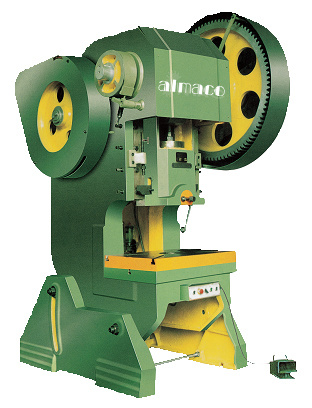

J23 Open Back Inclinable press
With strong support from SJR Machinery, Toptech Smac now is able to offer both metal cutting and metal forming machines to our valued customers. The produce lines include lathes, milling machines, grinding machines, power presses and hydraulic press brakes, CNC machines. With timely service and on-site training, our qualified technicians can ensure the machines’ maximum productivity. Toptech Smac also provides industrial solutions for your individual needs.
Category :
Power press
Keywords: machine tool 丨 grinding machine 丨 CNC
Product Detail
J23 Open Back Inclinable press
|
Num-bers
|
Specifications
|
Unit
|
11001
|
11002
|
11003
|
11004
|
11005
|
11006
|
11007
|
11008
|
|
|
J23-3.15
|
J23-6.3
|
J23-10
|
J23-16
|
J23-25
|
J23-40
|
J23-63
|
J23-80
|
||||
|
1
|
Rated pressure
|
KN
|
31.5
|
63
|
100
|
160
|
250
|
400
|
630
|
800
|
|
|
2
|
Slide stroke
|
mm
|
25
|
35
|
45
|
55
|
65
|
80
|
100
|
120
|
|
|
3
|
stroke
|
min-1
|
200
|
170
|
145
|
120
|
55
|
45
|
40
|
40
|
|
|
4
|
Max. die set height
|
mm
|
90
|
120
|
100
|
180
|
200
|
265
|
310
|
300
|
|
|
5
|
Die set height adjustment
|
mm
|
25
|
30
|
35
|
45
|
55
|
65
|
80
|
80
|
|
|
6
|
Distance from slide block centre to the frame
|
mm
|
90
|
110
|
130
|
160
|
200
|
250
|
310
|
310
|
|
|
7
|
Worktable dimen-sions
|
Front to back
|
mm
|
160
|
200
|
240
|
300
|
366
|
440
|
570
|
570
|
|
Right to left
|
mm
|
250
|
310
|
370
|
450
|
560
|
685
|
860
|
860
|
||
|
8
|
Dimensions of slide block bottom surface
|
Front to back
|
mm
|
90
|
120
|
150
|
180
|
210
|
245
|
340
|
340
|
|
Right to left
|
mm
|
100
|
140
|
170
|
200
|
250
|
300
|
400
|
400
|
||
|
9
|
Size of the handle hole
|
Diameter
|
mm
|
25
|
25
|
30
|
40
|
40
|
50
|
50
|
50
|
|
Depth
|
mm
|
40
|
55
|
55
|
60
|
70
|
70
|
80
|
80
|
||
|
10
|
Inclinable Angle of body
|
|
45
|
45
|
35
|
35
|
30
|
30
|
30
|
30
|
|
|
11
|
Motor
|
Type
|
|
Y180L-4
|
Y90L-6
|
Y90L-6
|
Y100L-6
|
Y100L-4
|
Y132S-4
|
Y132M-4
|
Y132M-4
|
|
Power
|
KW
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
5.5
|
7.5
|
7.5
|
||
|
12
|
Overall dimension
|
Long
|
mm
|
674
|
730
|
895
|
1130
|
1345
|
1685
|
1940
|
1940
|
|
Wide
|
mm
|
489
|
550
|
713
|
834
|
1150
|
1325
|
1502
|
1502
|
||
|
High
|
mm
|
1323
|
1503
|
1653
|
1890
|
2130
|
2470
|
2870
|
2870
|
||
|
13
|
Weight
|
Kg
|
194
|
400
|
576
|
1055
|
1780
|
3540
|
5200
|
5500
|
|
