YQ28 Series Double Action Hydraulic Drawing Press
With strong support from SJR Machinery, Toptech Smac now is able to offer both metal cutting and metal forming machines to our valued customers. The produce lines include lathes, milling machines, grinding machines, power presses and hydraulic press brakes, CNC machines. With timely service and on-site training, our qualified technicians can ensure the machines’ maximum productivity. Toptech Smac also provides industrial solutions for your individual needs.
Category :
Hydraulic press
Keywords: machine tool 丨 grinding machine 丨 CNC
Product Detail

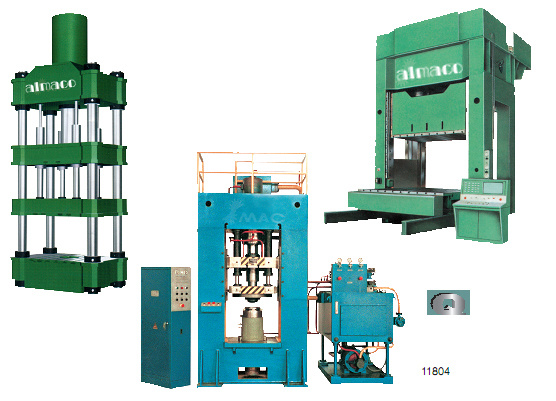

YQ28 Series Double Action Hydraulic Drawing Press
|
|
11801
|
11802
|
11802-1
|
11803
|
11803-1
|
11805
|
11806
|
||
|
Item
|
Unit
|
YQ28-63/100
|
YQ28 -100 /150
|
YQ28 -150/200
|
YQ28 -200/300
|
YQ28 -220/315
|
YQ28 -315/400
|
YQ28 -400/600
|
|
|
Nominal Force
|
KN
|
1000
|
1500
|
2000
|
3000
|
3150
|
4000
|
6000
|
|
|
Drawing Force
|
KN
|
630
|
1000
|
150
|
2000
|
2200
|
3150
|
4000
|
|
|
Knock out Force
|
KN
|
190
|
190
|
400
|
400
|
400
|
800
|
630
|
|
|
Blank – holder force
|
KN
|
300
|
500
|
630
|
800
|
1000
|
1000
|
2300
|
|
|
Max .pressure of liquid
|
MPa
|
25
|
25
|
25
|
25
|
25
|
25
|
25
|
|
|
Stroke of drawing slide
|
mm
|
600
|
600
|
700
|
800
|
800
|
800
|
800
|
|
|
Stroke of Bland-holder slide
|
mm
|
250
|
250
|
250
|
400
|
350
|
400
|
720
|
|
|
Stroke of knock out cylider
|
Mm
|
200
|
250
|
250
|
350
|
350
|
|
400
|
|
|
Daylight of drawing slide
|
Mm
|
1000
|
1200
|
1300
|
1400
|
1560
|
1500
|
2190
|
|
|
Daylight of blank holder slide
|
Mm
|
600
|
750
|
900
|
720
|
820
|
1000
|
1300
|
|
|
Table area
|
Mm2
|
720*580
|
800*800
|
1000*900
|
980*900
|
1120*120
|
1260*1200
|
1250*1250
|
|
|
Speed
|
Rapid down
|
Mm/s
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Deceleat down
|
Mm/s
|
20
|
20
|
20
|
20
|
20
|
20
|
16
|
|
|
Pressing
|
Mm/s
|
10-20
|
10-20
|
10-20
|
10-20
|
10-20
|
10
|
10-16
|
|
|
Retrun
|
Mm/s
|
100
|
100
|
100
|
135
|
100
|
100
|
100
|
|
|
Knock-out
|
Mm/s
|
95
|
95
|
90
|
90
|
90
|
90
|
100
|
|
|
Return
|
Mm/s
|
220
|
220
|
180
|
180
|
200
|
200
|
200
|
|
|
Overall Dimensions
|
L-R
|
Mm
|
2500
|
2300
|
3800
|
3800
|
3800
|
4500
|
4300
|
|
F-B
|
Mm
|
1500
|
900
|
1800
|
1800
|
1800
|
2800
|
2315
|
|
|
Height above Floor
|
mm
|
3200
|
3600
|
4400
|
4600
|
4400
|
4600
|
5240
|
|
|
Total power
|
KW
|
11
|
15
|
22
|
37
|
37
|
37
|
37
|
|
|
Total weight
|
Kg
|
6000
|
8000
|
10000
|
13000
|
15000
|
17000
|
47000
|
|
