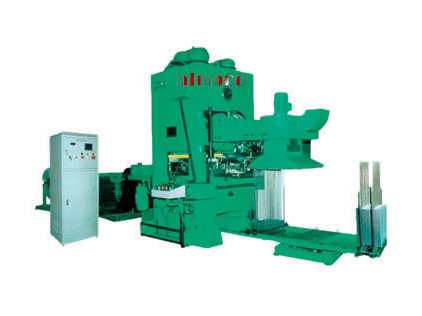

Fin press line
Keywords: machine tool 丨 grinding machine 丨 CNC
Product Detail
Main charactors & function:
1. Machine Line includes: Coil Cradle, Oil tank, Air feeder High-speed Precision Power press, Sucker & Collector, Air system, Electric system, Hydraulic system
2. The slide of power press has hydro-lifting function which will be convenient for dies installation/commissioning
3. Power Press speed & Vacuum Stucker is controlled by converter warning , no oil warning.
4. Collector has protecting system for fault operation, no material warning , no oil warning.
5. Power press has hydraulic overload system
6. Hydraulic rapid-dies changing device
7. PLC control & displayer
|
|
Unit
|
17001
|
17002
|
17003
|
17004
|
17005
|
|
|
Open type
|
Close type
|
Two point
|
|||||
|
JL21-45B
|
YKC-18
|
YKC-24
|
YKC-36
|
YKC-48
|
|||
|
Nominal:
|
KN
|
450
|
450
|
630
|
800
|
1000
|
|
|
Slidestrokes:
|
mm
|
40
|
40
|
40
|
40
|
40
|
|
|
Stroke per minute:
|
|
100-180
|
150-250
|
150-250
|
150-250
|
150-250
|
|
|
Die height:
|
mm
|
200-27
|
280-330
|
280-330
|
280-330
|
280-330
|
|
|
Slide lifting height:
|
mm
|
--
|
80
|
80
|
100
|
140
|
|
|
Table size:
|
mm
|
750×750×80
|
1100×780×100
|
1300×900×100
|
1350×1200×130
|
1400×1500×140
|
|
|
Bottom size of slide:
|
mm
|
500×300
|
670×720
|
920/720×820
|
900×11700
|
900×1470
|
|
|
Width of material:
|
mm
|
300
|
400
|
550
|
800
|
1050
|
|
|
Sucking length:
|
mm
|
800,1000
|
800,1000
|
800,1000
|
1000
|
1000
|
|
|
Collecting height:
|
mm
|
600
|
720
|
720
|
720
|
720
|
|
|
Coil ID×OD
|
mm
|
φ85×φ850
|
φ150×φ1000
|
φ150×φ1000
|
φ150×φ1000
|
φ150×φ1000
|
|
|
Main motor
|
KW
|
5.5
|
7.5
|
11
|
15
|
18
|
|
|
Weight:
|
kgs
|
6000
|
9000
|
12000
|
18000
|
22000
|
|
|
Overall size:
|
cm
|
650×250×265
|
750×300×320
|
750×350×350
|
950×450×350
|
1000×700×400
|
|
Chip-cleaning machine specially designed for elbows
This machine is used to deal with kinds of small elbows at 9.52 to 7in heat echanger. It can remove burring of massive elbows and clean them and make them dry at one time.
1. Feeder,which can convey the small elbows from storage happer to vibrating grinding machine. The time and frequency can be set.
2. Cleaner, in which both elbows and grinding steel balls vibrate and they rub each other. In the meantime, cleaning agent at a certain dilution ratio is added continuously to wash the elbows and the wastewater is discharged. Thus the burring is removed.
3. Dryer in which elbows automatically is aligned with openings downwards, so as to completely empty the grinding balls in the elbows and to dry tem up by electrical heat-blower.
|
Main technical parameters
|
||||
|
Power supply
|
Quantity of elbows for one clean
|
Clean speed
|
Dimensions(m)
|
Weight
|
|
10.5kw
|
1800 or so
|
100pcs minutes
|
3.82×1022×1.92
|
1500kg
|
